Rockchip RK3328 ps3 android motherboard or Single-Board Computer HM-RK64

  • Model: HM-RK64
  • Shipping Weight: 4g
  • 1000 Units in Stock
  • Manufactured by: Highton Electronics CO LTD

Add to Cart:


Description:

Model No.: HM-RK64

Specification :

1.CPU: Rockchip RK3328 Quad-Core A53 1.5GHz;

GPU:Mali-450MP2, Support OpenGL ES1.1/2.0;

2.Operation System: Android 6.0,Support Linux Ubuntu OS,

3.Memory & Storage: 1G ram LPDDR3 (2G or 4G ram is optional), Add-in 34-pin 8G or 16G or 32G or 64G EMMC module is optional,easily upgrade storage,

4.Wireless network:802.11b/g/n wifi;

5. I/O ports:

   1*DC port (3.5mm),

   1*10/100/1000Mbps Ethernet with RJ-45 LAN jack,

   2* high-speed USB2.0 host ports,

   1* super-speed USB3.0 host port,

   40 GPIO pins (quasi-Raspberry Pi compatible) + Pi-P5+ Bus,

   3.5mm A/V Jack on board,

   1*micro SD card slot supporting max 64GB TF card;

6.Expansion Headers: 40-pin Pi-2 Bus with GPIOs, 2*I2C,Analog inputs,UART,SPI,and power signals (5V, 3.3V, and GND);

 22-pin Pi-P5+ Bus with GPIOs, I2S, S/PDIF, Ethernet, and power signals (5V, 3.3V, and GND);

7.Physical buttons: power / reset / recovery,

8.Misc:IR Receiver;

9.Power Supply:5V/3A via 3.5mm/1.35mm power barrel;

10.Video output:AVIH.264, DIVX, DIVX, XVID, rm, rmvb,MKVH.264, DIVX, DIVX, XVID), WMV, MOV, MP4H.264, MPEG, DIVX, XVID), MPEG, MPG, FLVH.263H.264)support 4K video;

11. Audio Output: MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV,etc.

12.Image format:JPG, JPEG, GIF, BMP, PNG.

13.Applications:Email,gmail,brower,Google talk,playstore,download,media player,music,camera,games,Calendar, clock, recorder, calculator, settings, File Manager, search, Flash Player Settings, power tools,etc.

14. PCBA Dimention: 85 * 56 * 18 mm, Weight: about 40g.





Picture:

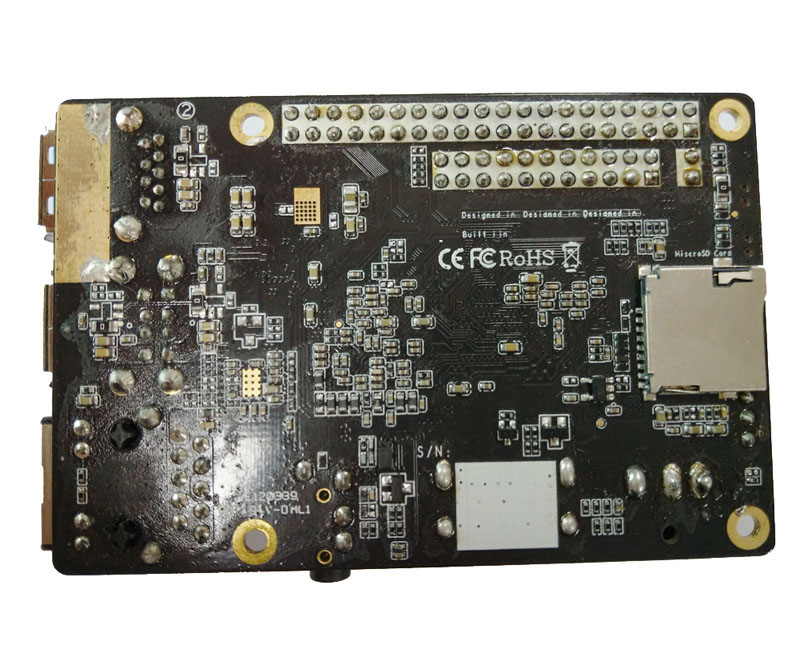

hm-rk64-front-side-1-800 800.jpghm-rk64-actual-1-800.jpgaudio pot board-800-1.jpghm-rk64-actual-back-800.jpghm-rk64-hdmi-11-800.jpghm-rk64-words-800-1.jpghm-rk64-size-800-1.jpghm-rk64-pi2 bus-800-1.jpghm-rk64-pip5 bus-800-1.jpghm-rk64-front-800-1.jpg



If you have any question, please feel free to inquire us. We will try to answer your questions as soon as possible.



If our product can't meet your demand, Could you send your requirements and order quantity to  admin@szhighton.com ?  We have other model Nos or can make ODM order for you.



Thanks.


This product was added to our catalog on Friday 04 May, 2018.
