Description:

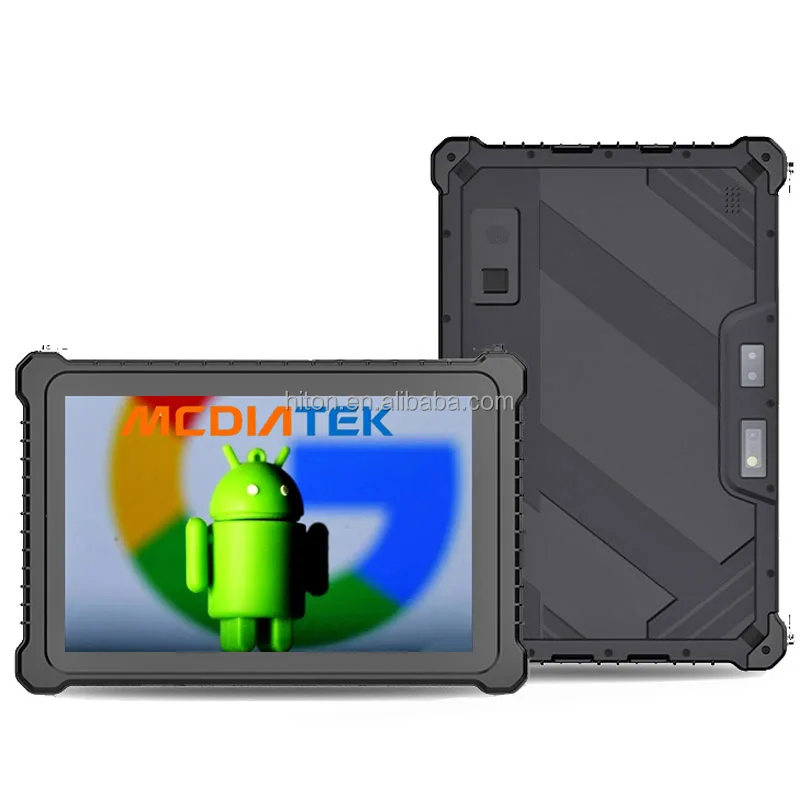

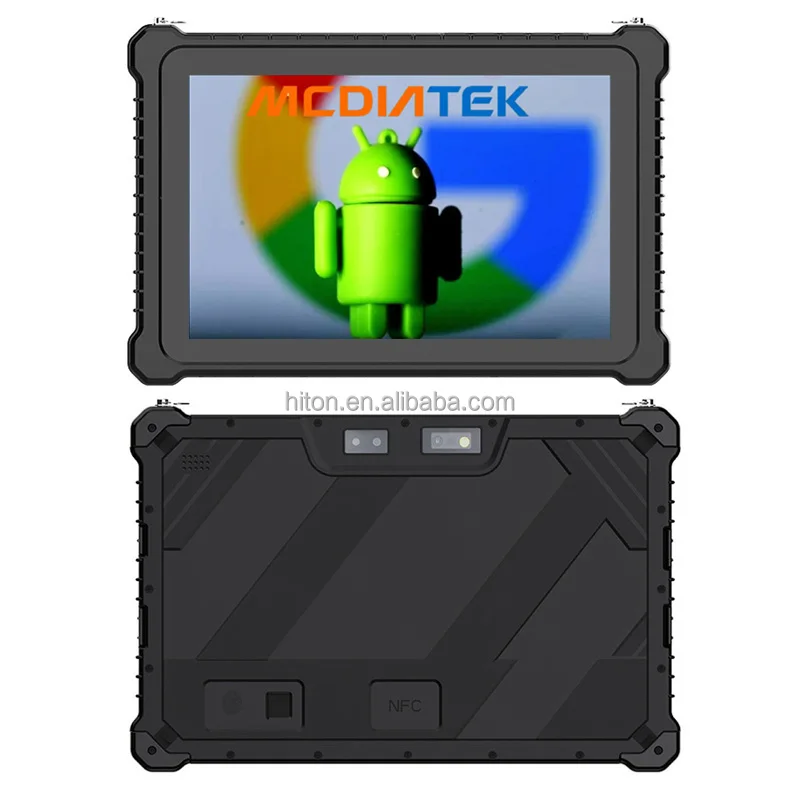

Model No.: HR1058
Specification

1.CPU: MediaTek MTK8788 Octa (8)-core 2.0GHz;

2.Operation System: android 12.0;

3.Display & Touch screen: 10.1 inch multi-touch Capacitive screen, FHD screen 1200*1920 Pixels,550cd/m2 brightness,normal Sunlight readable;

4.4G Networks: support B5/B8/B3/B2,3G WCDMA: B1/B2/B8/B5,TD-SCDMA:B34/B39,CDMA:BC0,4G TDD-LTE: B38/B39/B40/B41; 4G FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28AB/B66;

5.Two Cameras: Front 5.0MP camera,Rear 16.0MP Camera;

6.Memory & Storage: 4GB ram + 64GB ROM, 8GBRam+128GBRom or 8GB+256GB is optional for bulk order;

7.Wireless network: 802.11 a/b/g/n/ac 2.4G+5Ghz dual-band wifi and blutooth V5.0;

8.Battery: Built-in 3.8V / 12000mAh Lithium Battery;

9.I/O ports: 1*DC port,1*Type-C Port,1*10M/100M RJ45 Ethernet port ,1*USB2.0 Type-A Host,1*RS232 Serial port(DB9),1*micro HDM-I port,1*Earphone jack,1*Sim card slot,1*12-pin Pogo-Pin port;

10.NFC:13.56MHZ,support ISO14443A/B/15693,optional;

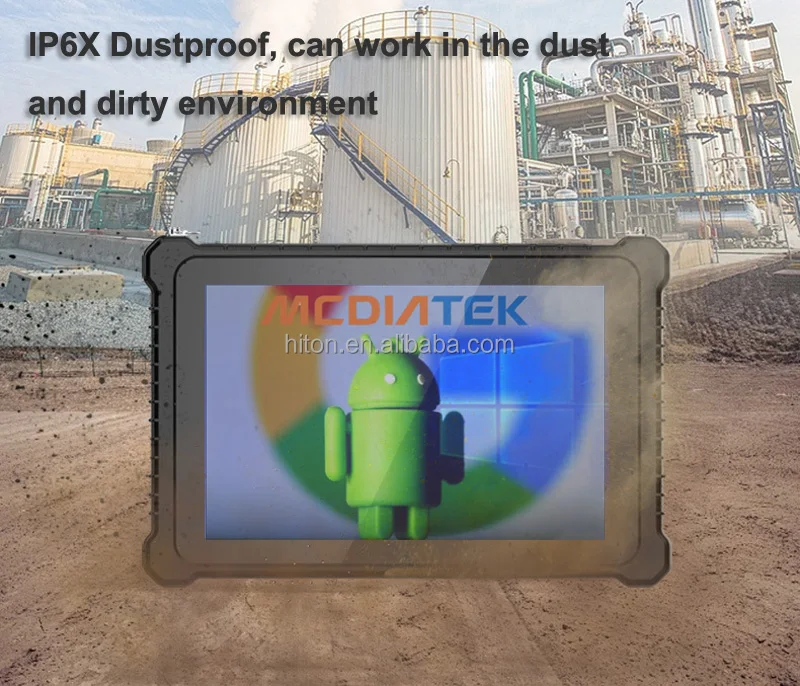

11.Rugged Durability: Waterproof and dustproof rate: IP68, complying with 1.0 meter dropproof;

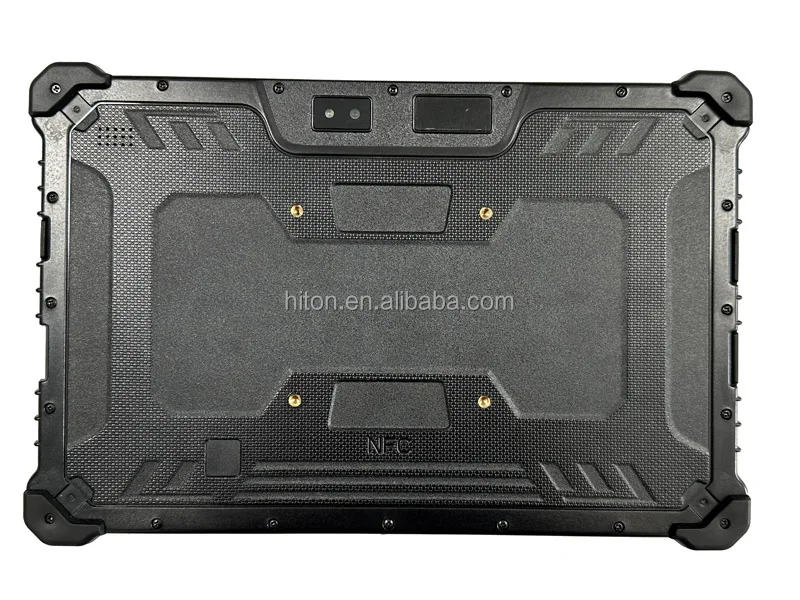

12.VESA design back cover: 75*75mm,optional;

13.Navigation and Location: Support GPS, Glonass/ Beidou is optional;

14. 2D barcode scanner: Newland N1,optional;

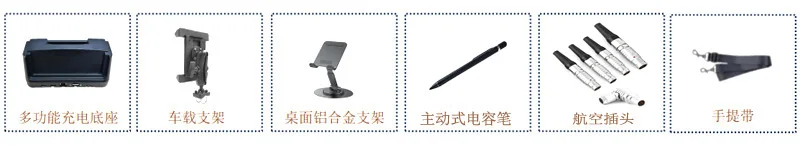

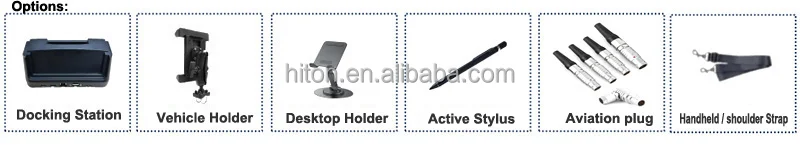

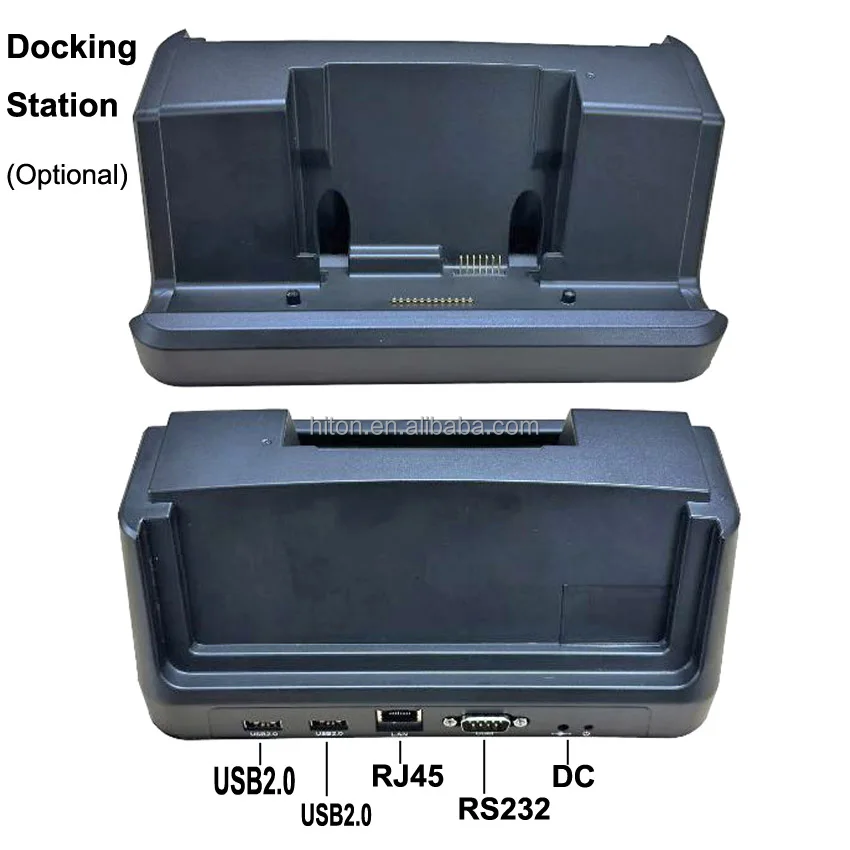

15. Docking Station: 1*DC port+2*USB2.0 host+1*RJ45+1*RS232, is optional;

16.Small or big fingerprint scanner:Small fingerprint support unlock function, or big industrial fingperint, is optional;

17.UHF RFID:reading distance: 1.5-2.5 meters, is optional;

18.Vehicle holder or charger or desktop holder: is optional,must need VESA back cover;

19.Handheld and shoulder Strap:  is optional;

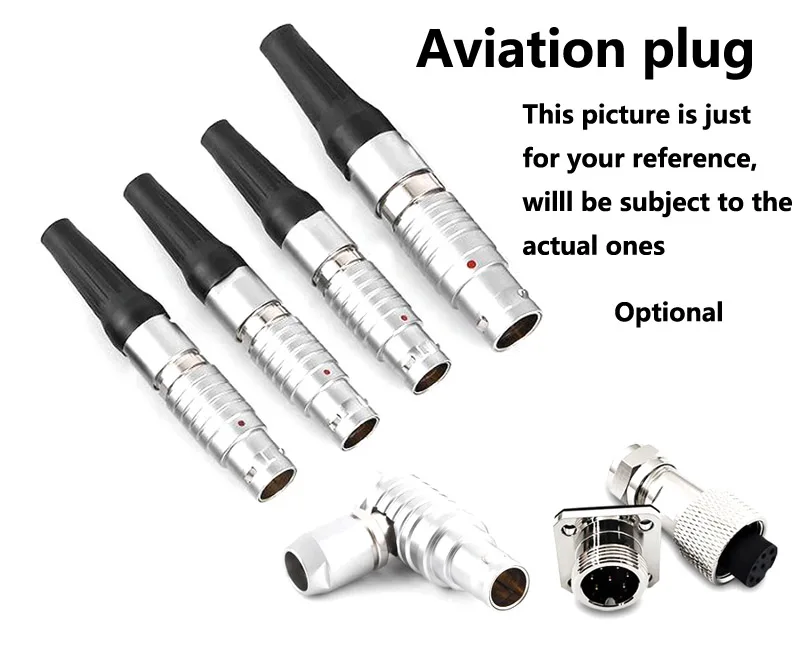

20. Aviation plug:Support USB2.0 or 3.0 or RS232 or RS485 or RJ45 ethernet, is optional;

21.Active Stylus pen: is optional;

22. Dimension: 284*189*26mm, about 1.2KGs.
