Description:

Model No: HR1020

Specification:

1.CPU: Intel Gemini lake N4120 Quad-core 1.1-2.6Ghz, GPU:UHD Graphics 600;

2.Operation System: free trial-version Windows10 pro, original win10 Pro Key is optional;

3.Display & Touch Screen: 10.1 inch Capacitive Multi-touch IPS screen,HD 1280*800 Pixels;300cd/m2;10.1inch FHD 1920*1200pixels 600cd/m2 is optional;

4.Two Cameras: Front 2.0M camera, Back 5.0M Camera;

5.Memory & Storage: 8GB ram LPDDR4 + 128GB EMMC;

6. Wireless Network: 802.11 b/g/n/ac wireless (2.4G+5.8Ghz Dual-band wifi) and Blutooth4.2;

7.Battery: Built-in 7.6V/5000mAh Lithium Battery;

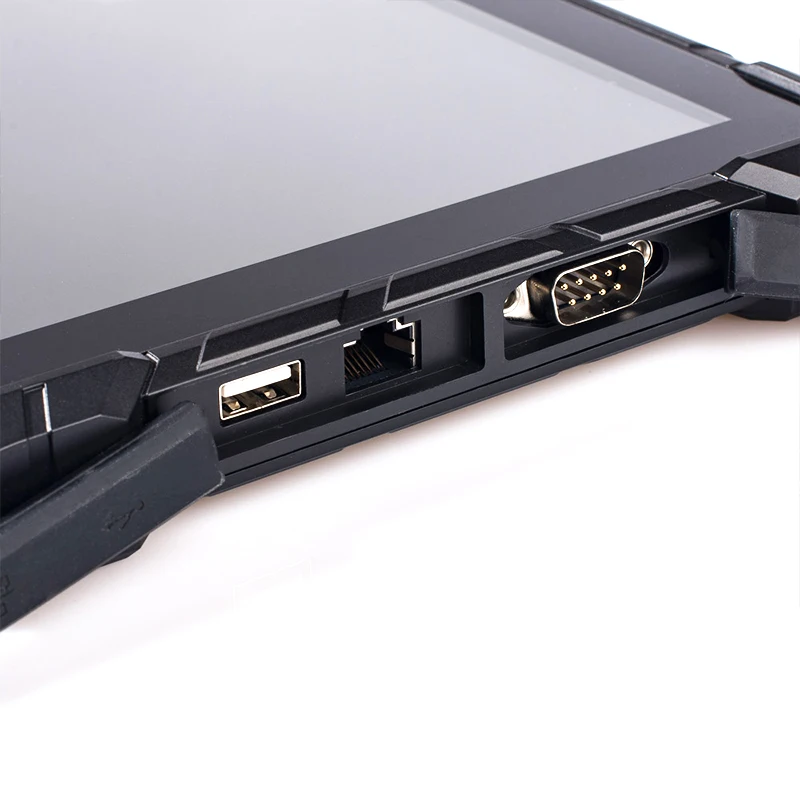

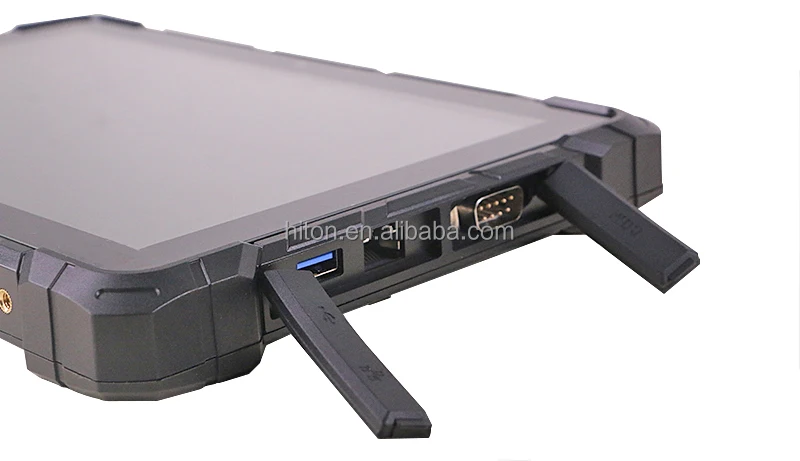

8.I/O Ports:1*RJ45 100/1000M Ethernet Port,1*DB9 RS232 Serial port, 1*Type-C 3.1 USB,2*USB3.0 Host,1*DC port 1*TF Card Slot, 1*HDM-I 2.0 Port (Support 4K 60fps), 1*earphone jack, 1*Sim Card Slot,

9.Rugged Durability: Waterproof and dustproof rate:IP67; Ruggedness: comply with 1.0 Meter dropproof.

10.4G Network: Support GSM: B8/B3=900/1800Mhz,3G WCDMA: B1/B8=2100/900MHZ;TDS-CDMA: B34/B39=2010-2025/1880-1920Mhz; TDD-LTE: B38/B40/B41=2600/2300MHZ;FDD LTE: B1/B3/B7/B8/B20=2100/1800/2600/900/800MHZ, is optional;

11.Navigation: Support GPS, is optional;

12.NFC:13.56MHz, Compliant with ISO/IEC14443A/B/15693,Mifare, is optional;

13.Barcode Scanner: 2D Barcode scanner Newland EM3296, is optional.

14.Fingerprint scanner: support unlock, is optional;

15.Shoulder girdle: is optional;

16.Dimention: 280*184*26.5mm.

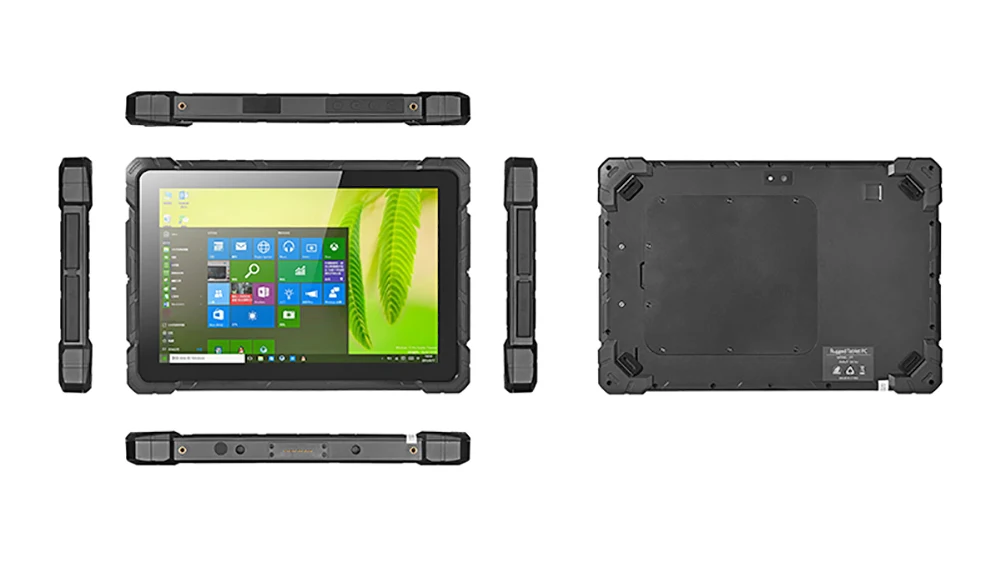

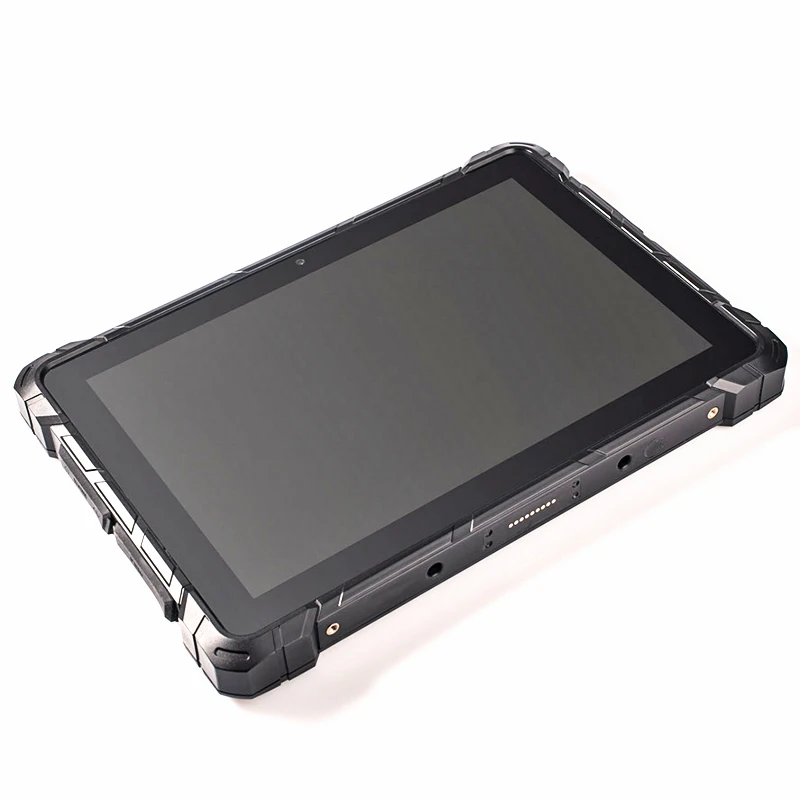

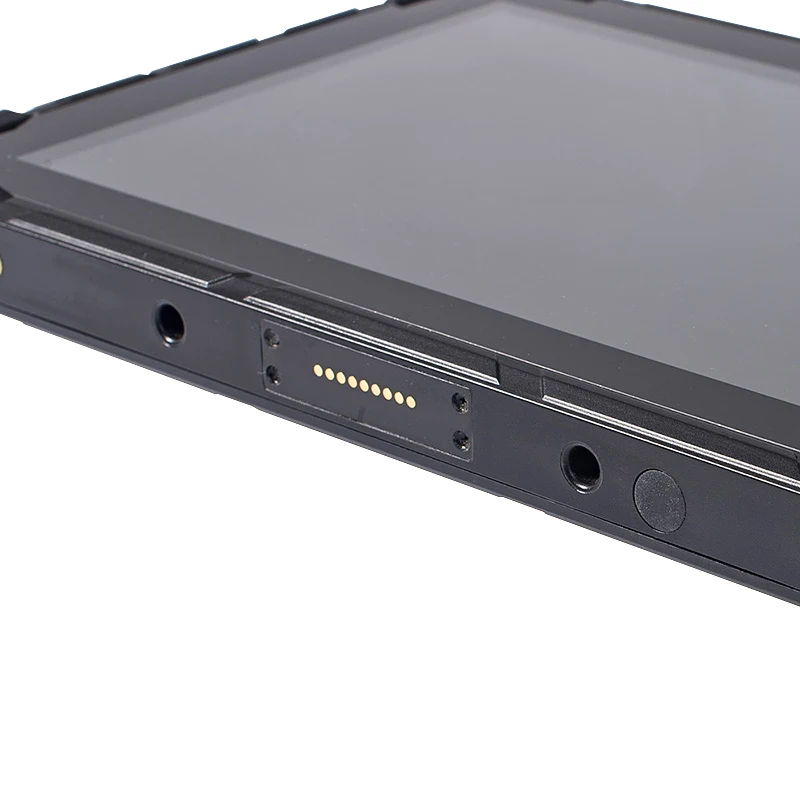

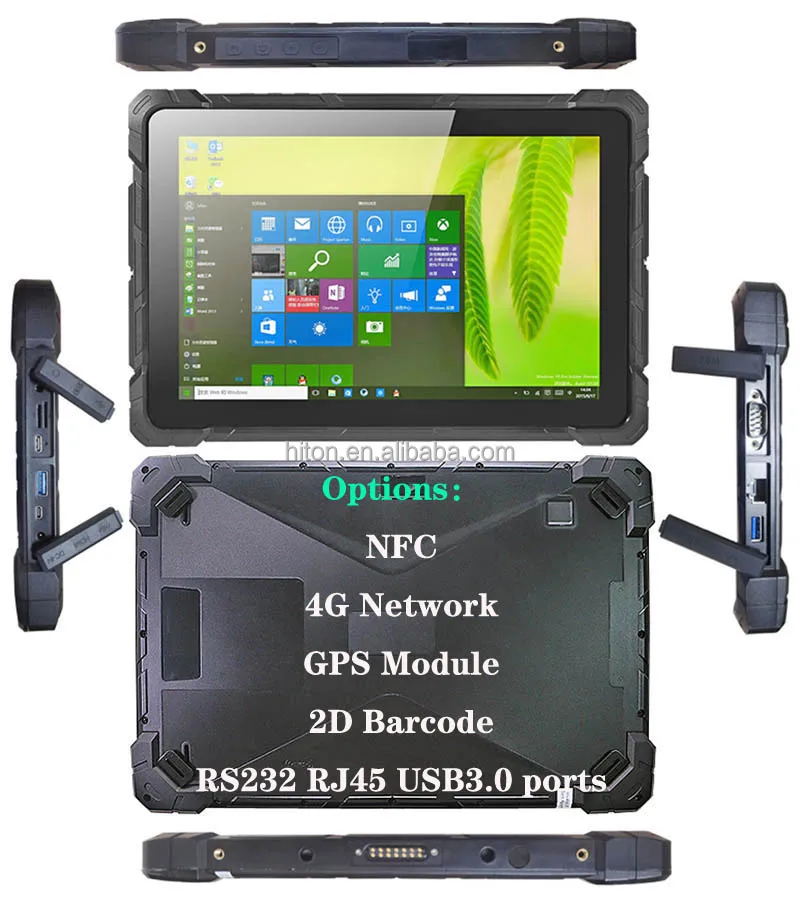

Image:
