Description:
Model:HR1020
Specifications:
1.CPU: Intel Gemini lake N4120 Quad-core 1.1-2.6Ghz, GPU:UHD Graphics 600;
2.Operation System: free trial-version Windows10 pro, original win10 Pro Key is optional;

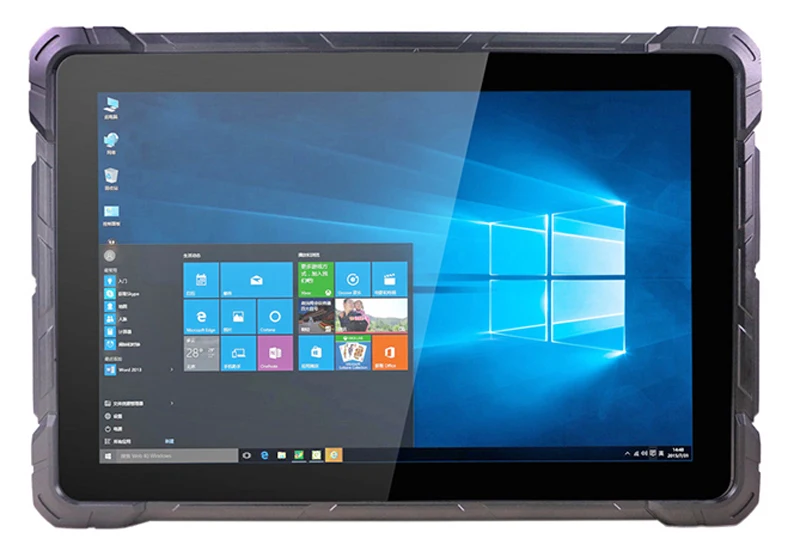

3.Display & Touch Screen: 10.1 inch Capacitive Multi-touch IPS screen,HD 1280*800 Pixels;300cd/m2;10.1inch FHD 1920*1200pixels 600cd/m2 is optional;
4.Two Cameras: Front 2.0M camera, Back 5.0M Camera;
5.Memory & Storage: 8GB ram LPDDR4 + 128GB EMMC;
6. Wireless Network: 802.11 b/g/n/ac wireless (2.4G+5.8Ghz Dual-band wifi) and Blutooth4.2;
7.Battery: Built-in 7.6V/5000mAh Lithium Battery;

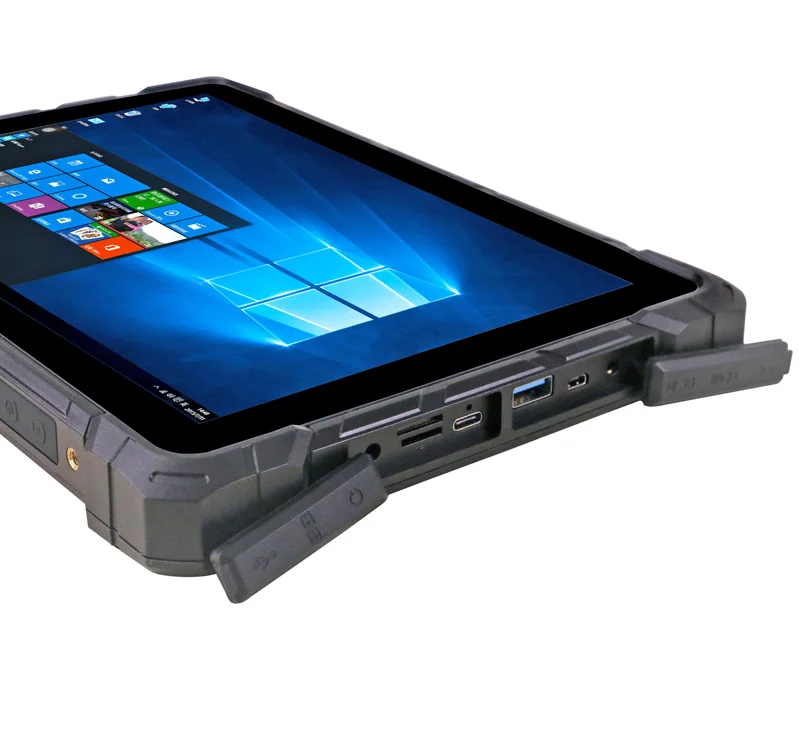

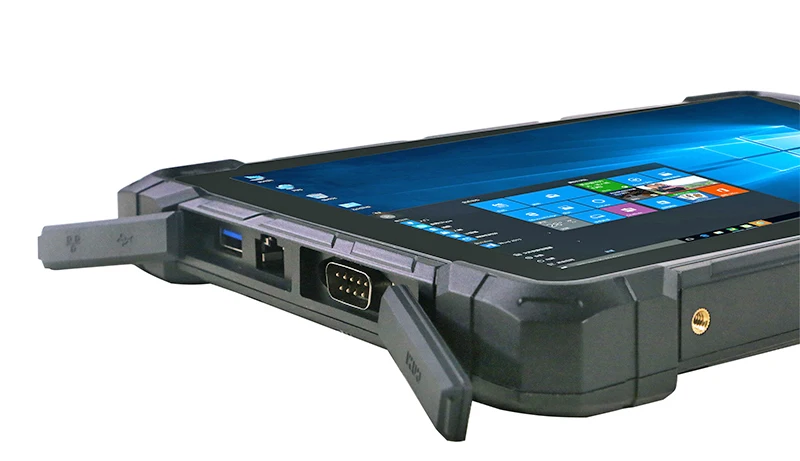

8.I/O Ports:1*RJ45 100/1000M Ethernet Port,1*DB9 RS232 Serial port, 1*Type-C 3.1 USB,2*USB3.0 Host,1*DC port 1*TF Card Slot, 1*HDM-I 2.0 Port (Support 4K 60fps), 1*earphone jack, 1*Sim Card Slot,
9.Rugged Durability: Waterproof and dustproof rate:IP67; Ruggedness: comply with 1.0 Meter dropproof.
10.4G Network: Support GSM: B8/B3=900/1800Mhz,3G WCDMA: B1/B8=2100/900MHZ;TDS-CDMA: B34/B39=2010-2025/1880-1920Mhz; TDD-LTE: B38/B40/B41=2600/2300MHZ;FDD LTE: B1/B3/B7/B8/B20=2100/1800/2600/900/800MHZ, is optional;
11.Navigation: Support GPS, is optional;
12.NFC:13.56MHz, Compliant with ISO/IEC14443A/B/15693,Mifare, is optional;
13.Barcode Scanner: 2D Barcode scanner Newland EM3296, is optional.
14.Fingerprint scanner: support unlock, is optional;
15.Shoulder girdle: is optional;
16.Dimention: 280*184*26.5mm.
Image:






If our products can not meet your requirements, could you please send us your requirements and the quantity of your order? We have many other models that can meet your requirements, or we can make ODM orders for you.
