Description:

Model:HV768
Specifications:

1.CPU: Rockchips RK3568 Quad-core 2.0GHz, GPU:ARM G52 2EE, NPU: Support 1T;

2.Operation System: Linux 4.19 or Ubuntu20.04,Debian10,

3.Display: 7 inch Capacitive Multi-touch IPS HD 1280*800 Pixels;

4. Memory & Storage: 2GBram +16GB Rom;

5. Wireless network: 802.11 b/g/n/ac/ax Wifi6 and Blutooth V5.2;

6.I/O ports:1*DC Port (12V/3A), 1*USB3.0 Host,1*RS232,1*RS485,4*SAM card slot, 1*GPIO Port (optional);

7.NFC: 13.56Mhz, Supports mifare one (M1), S50, S70, UL:NTAG2xx series read/write. Protocol: ISO14443A, ISO14443B ;

8. Speakers: 8Ω, 3W;

9. RJ45 Ethernet LAN Port: 10/100/1000Mhz;

10. Contact IC Card Reader: Support  IC Card ISO/IEC7816-1,2,3 Class A,B and C;

11.2D barcode scanner: support PDF417, MicroPDF417, Data Matrix, Maxicode, QR code, Micro QR, Aztec, Haxin, GM and other QR code,etc.

12. Waterproof & DustProof  Rate: IP65;

13. Body material and technology: Aluminum CNC engraving, anodized surface;

14. Working temperature: -20 to 60 Temperature;

15. 4G Networks (optional): Support GSM: B5/B3,WCDMA: B1/B3, 4G FDD LTE: B1/B3/B5/B7, Optional.

16. Dimension: 240*130*78mm; Net weight: about 1500g.

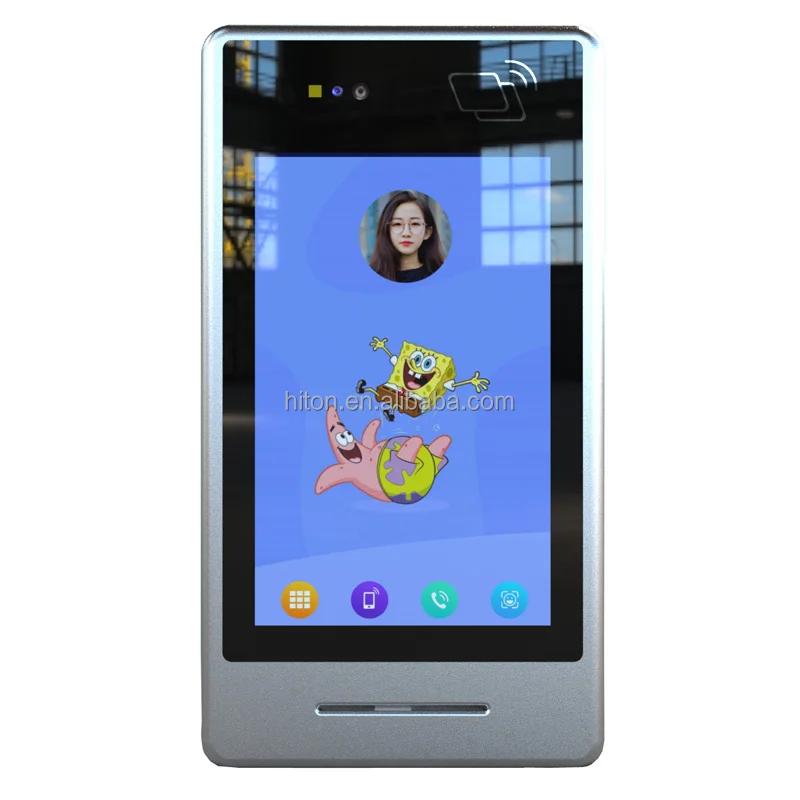

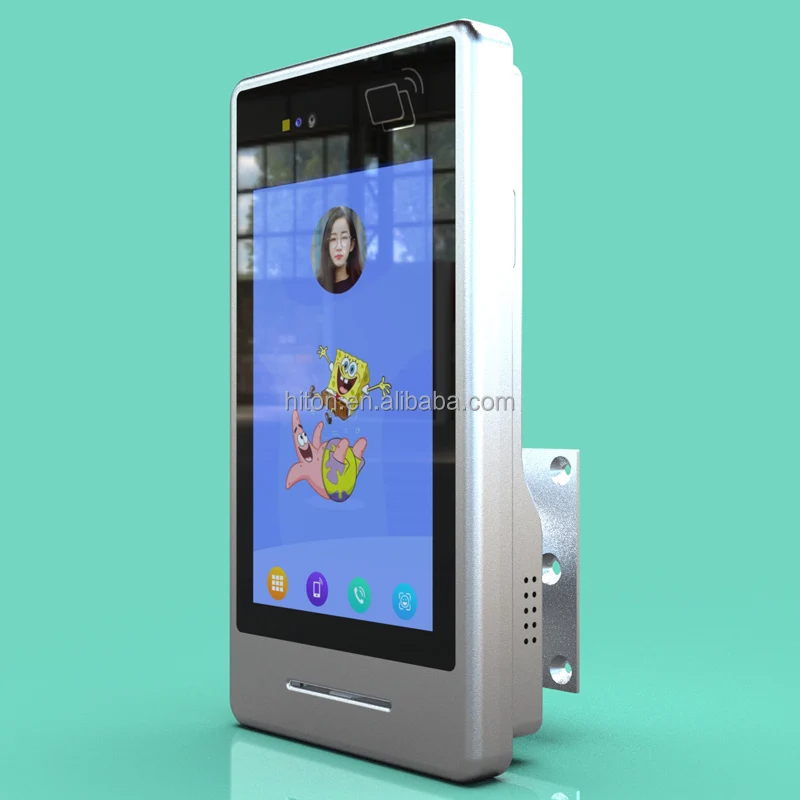

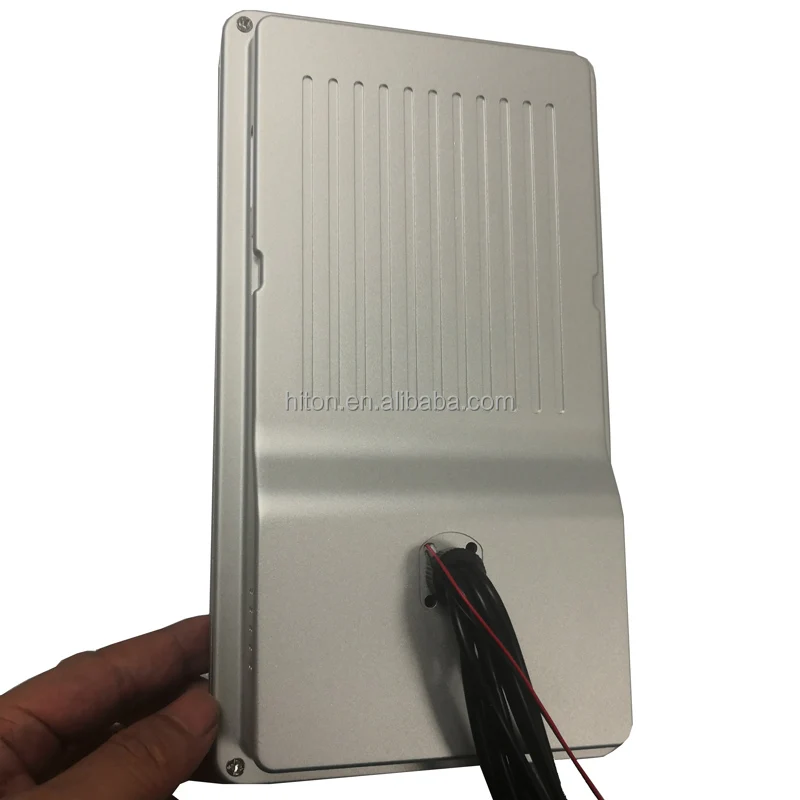

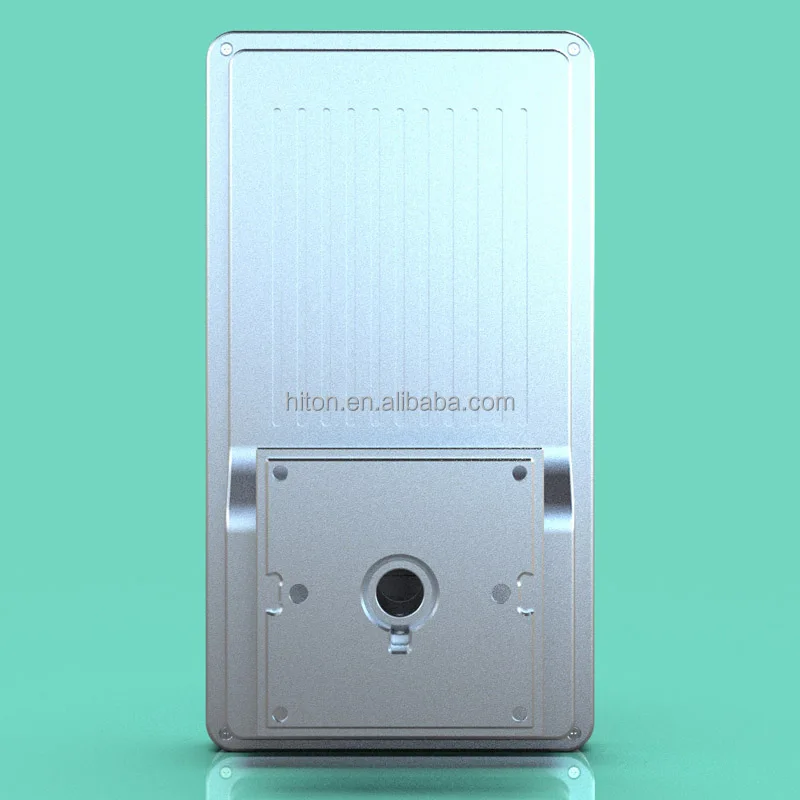

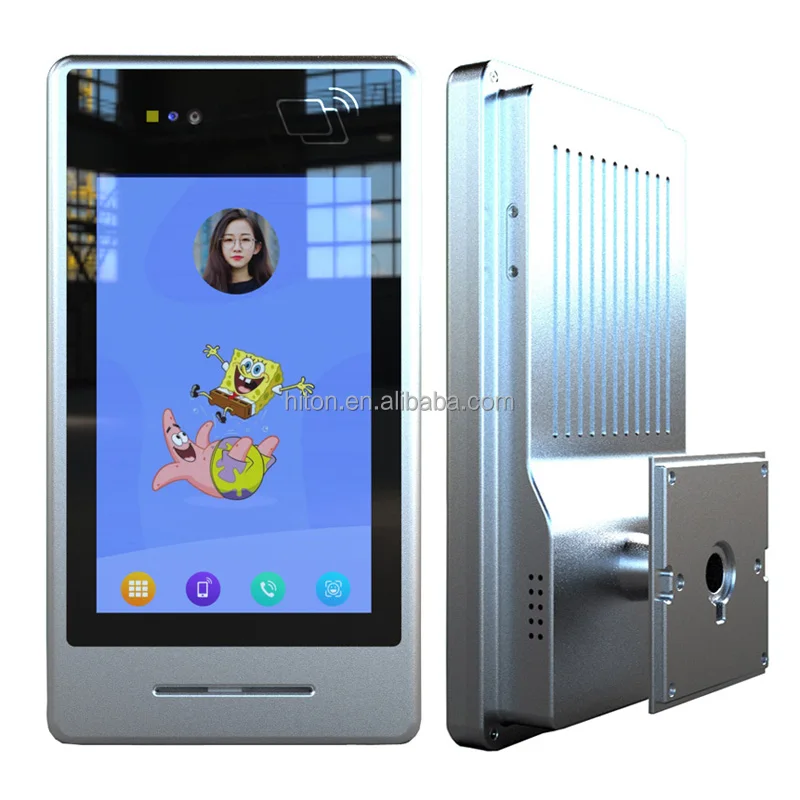

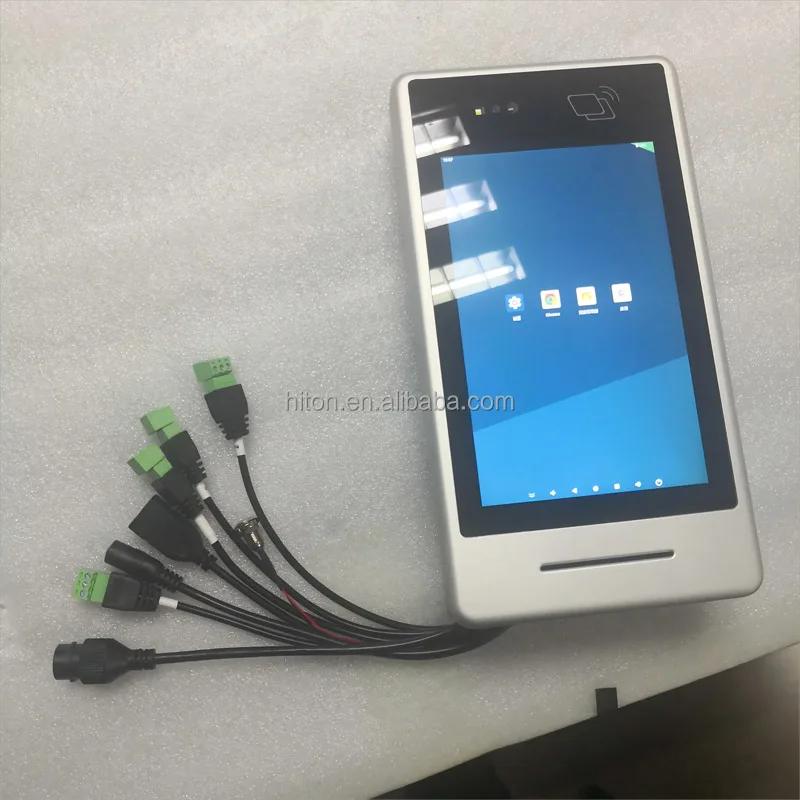

Image:
