Highton Cheap Bus Ticket Validator Bus Card Reader Public Transportation Payment POS System

  • Model: HBV02
  • Shipping Weight: 4g
  • 2000 Units in Stock
  • Manufactured by: Highton Electronics CO LTD

Add to Cart:


Description:

Model Number: HBV02


Specifications:

Specification Features
CPU 32-bit ARM
Display Front LCD, 128x64dot, 2 LED status indicators (user can choose color screen)
Storage SDRAM Storage
Operating system  Linux
RF performance All contactless IC cards conforming to ISO/IEC 14443 are supported. (Mifare1 standard S50 and S70 cards, non-CPU cards, UnionPay cards, NFC mobile phones, etc
Communication mode  Support USB OTG; extend EV-DO interface with built-in wireless antenna for 3G and 4G; expand WiFi (compatible with 802.11b/g), Bluetooth, etc; RS485 communication 7. Communication mode is the system linkage communication
Interface TF card interface, which can be used as storage medium for photos and data of vehicle terminal
Privilege Settings Operator keyboard to set the privileges of administrators, driver operation of station reporting function
Positioning GPS Global Positioning System, Platform Management Software to support vehicle terminal trajectory, terminal can be extended to terminal support vehicle location map
SAM Card Interface Supports four SAM cards conforming to ISO7816 protocol, key secure access and privilege 3DES algorithm, RSA, national secret and other algorithms, and supports multi-level key dispersion.
Voice Chinese and English voice prompts, support multiple audio format file playback
Read and write 13.56 MHz contactless CPU cards conforming to 14443 TYPEA/B, reserved Mifare cards and their compatible cards, which can be compatible with Apple Pay, Samsung Pay, MiPay and Huawei Pay.
Working Temperature -20 to +55
Relative humidity 0-90%
Scan Code Payment Support PDF417, QR Code, Data Matrix, etc., recognition accuracy >=5mil, support WeChat, Alipay and other three party payment platform
Transaction response time < 0.3s
Power supply 8-60V input with over-voltage, over-current and anti-protection
Antistatic interference >15KV

Pictures:

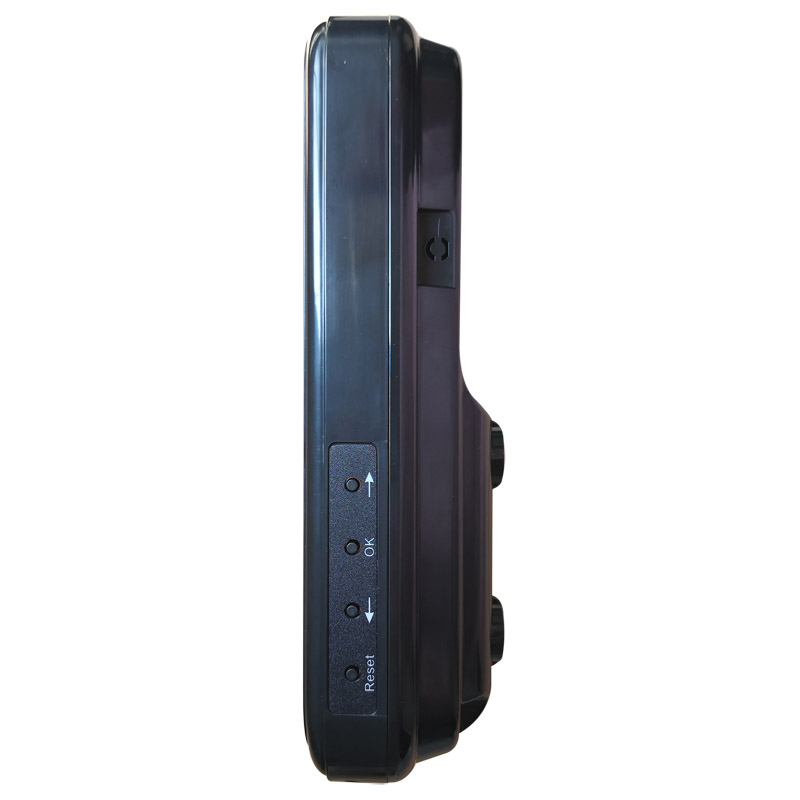

hbv02-f2-800.jpghbv02-f-800.jpghbv02-b-800.jpghbv02-s3-800.jpghbv02-s1-800.jpghbv02-s2-800.jpg

If our products can not meet your requirements, could you please send us your requirements and the quantity of your order? We have many other models that can meet your requirements, or we can make ODM orders for you.
