Description:

Model No: HR15i7
Specification

1.CPU:  Intel® 11th Generation KBL-R Intel® Core™ i7-1165G7,2.8Ghz,Turbo to 4.7GHZ; GPU: Intel Iris Xe Graphics;

2.Operation System: trial-version Windows 11 pro OS, original  Windows11 pro System is optional;

3.Display & Touch Screen: 15.6 inch FHD 1920*1080pixels LCD Monitor，brightness: 700cd/m2;

4.Front Camera: Front 2.0M camera;

5.Memory & Storage: 32GB ram Memory ram DDR + 256GB SSD,512GB or 1TB SSD is optional;

6. Wireless Network:  Intel AX200:support wifi6: 802.11 a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax and Blutooth 5.1;

7.Battery: Built-in 7.4V/1750mAh Lithium Battery+ hot-swap 7.4V/6300mah battery,

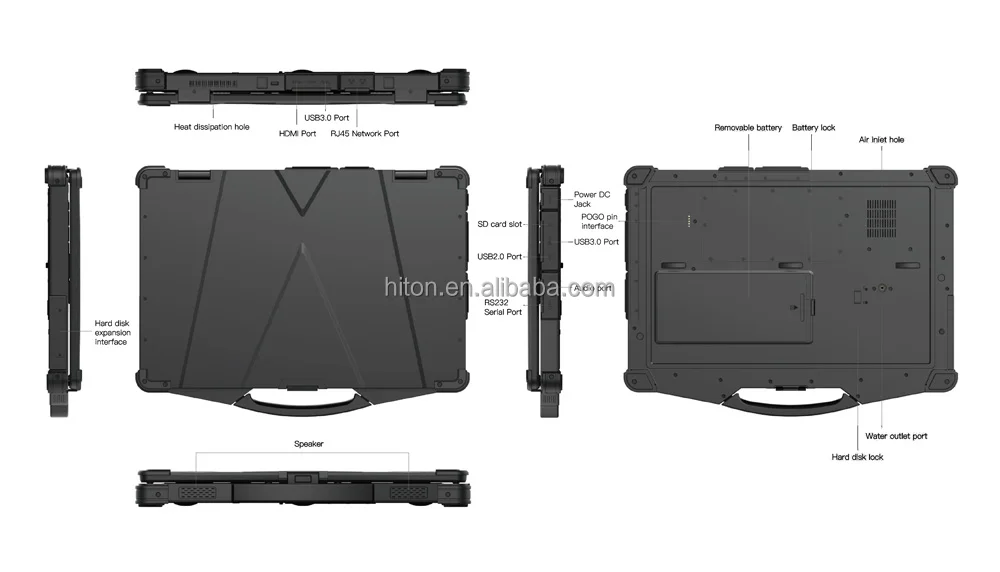

8.I/O Ports:2*RJ45 10/100/1000M Ethernet Port,1*DB9 (RS232 or RS485) Serial port, 3*USB3.0,1*USB2.0 Host,1*DC port(19V/3.42A), 1*TF Card Slot, 1*HDM-I 1.4a Port, 1*earphone jack, 1*Sim Card Slot,1*5-pin POGO-Pin port;

9.Rugged Durability: Waterproof and dustproof rate:IP65; Ruggedness: comply with 1.0Meter dropproof.

10.4G Network (optional): 4G LTE:Quectel EC25-EU, Frequency: FDD LTE Bands: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8, is optional;

11.Navigation:U-blox NEO-7,Support GLONASS,QZSS,GPS;

12.Fingerprint scanner:SPI,support fingerprint to load in system;

13.Dimention: 397*271*37mm, about 3.3KGs.
